Xbox HDMI Repair Guide: Step-by-Step Instructions 2025

Staring at a blank screen or watching your Xbox display flicker can be frustrating, especially when all you want is a smooth gaming session. HDMI port problems are among the most frequent issues faced by Xbox owners, affecting both seasoned gamers and newcomers alike.

This comprehensive xbox hdmi repair guide walks you through diagnosing and fixing HDMI issues in 2025. Whether you are tackling your first repair or looking to refine your skills, you will find clear steps and practical advice.

Learn how to identify HDMI problems, gather the right tools, safely disassemble your console, replace or repair the port, and test your Xbox for a successful fix. Get ready to restore your console with confidence.

Understanding Xbox HDMI Issues

Struggling with display problems on your Xbox can be both frustrating and confusing. HDMI port failures are among the most common issues, affecting gamers across all Xbox models. By understanding the typical symptoms, causes, and diagnostic steps, you can confidently approach xbox hdmi repair and get your console back in action.

Common Symptoms of HDMI Failure

Recognizing the signs of HDMI failure is the first step in xbox hdmi repair. Gamers often experience:

• No signal or a persistent black screen when connecting to their TV or monitor.
• Flickering, distorted, or flashing video output that disrupts gameplay.
• Error messages such as “No Input” or “Unsupported Signal” on the display.
• Audio issues that seem to originate from the HDMI output, like missing or crackling sound.
• Intermittent connections, or the HDMI cable feeling loose when plugged in.
• On visual inspection, bent or broken pins inside the HDMI port.

Recent data highlights a 15% increase in HDMI port complaints among Xbox Series X users in 2024, underscoring the prevalence of these problems. For a broader overview of hardware issues, including HDMI failures, you can reference the Common Xbox console repairs resource for additional insights.

Causes of HDMI Port Damage

Several factors contribute to HDMI port issues, making xbox hdmi repair a frequent necessity. The most common causes include:

• Physical force from frequent plugging and unplugging of HDMI cables.
• Dropping or moving the console while the cable is connected, stressing the port.
• Accumulation of dust, debris, or oxidation inside the HDMI connector.
• Manufacturing defects or solder joint failures that weaken port stability.
• Power surges that damage internal HDMI circuitry.
• Electrostatic discharge (ESD) incidents, which can create microfractures in the port’s solder connections.

Each cause can lead to different symptoms, so careful inspection is crucial before proceeding with repairs. Understanding these factors helps prevent future damage and guides you toward a successful xbox hdmi repair.

Diagnosing the Root Problem

Effective xbox hdmi repair starts with accurate diagnosis. Begin by:

• Testing your Xbox with multiple HDMI cables and different displays to rule out external faults.
• Accessing the Xbox troubleshooting menu, if possible, to check for error codes or display settings.
• Verifying that your system's software and firmware are up to date, as updates can affect HDMI compatibility.
• Ruling out more serious issues, such as GPU or motherboard failures, which may present similarly.
• Performing a thorough visual inspection for physical damage, and using a multimeter to test continuity if equipped.

Taking the time to diagnose the root problem ensures that your repair efforts are targeted and effective. This approach not only saves time but also reduces the risk of unnecessary part replacements or further complications.

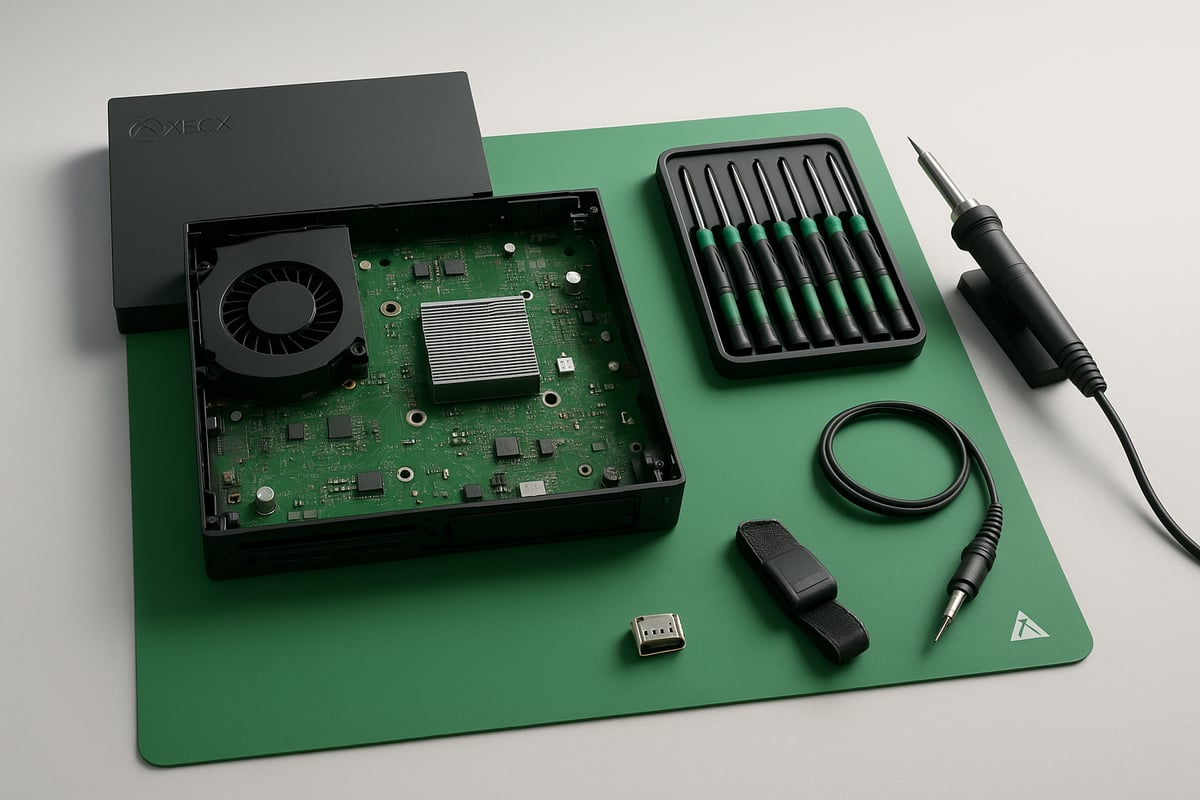

Preparing for Xbox HDMI Repair

Getting ready for xbox hdmi repair requires careful planning and the right approach. Before you start, ensure you have all essential tools, set up a safe workspace, and understand the implications regarding your data and warranty.

Tools and Materials Needed

To complete an xbox hdmi repair successfully, gather the following tools and materials before beginning:

• Precision screwdriver set (Torx, Phillips)
• Soldering iron with fine tip and quality solder
• Desoldering pump or wick for component removal
• Replacement HDMI port specific to your Xbox model
• ESD-safe mat and wrist strap to prevent static damage
• Isopropyl alcohol, anti-static brushes, soft cloths

Consider purchasing a comprehensive repair kit, now widely available on online marketplaces. For example, Amazon’s best-selling Xbox HDMI repair kits in 2025 often include model-specific ports, screwdrivers, and cleaning supplies. Having these items in advance streamlines the repair and reduces the risk of missing crucial components.

Safety Precautions and Workspace Setup

Safety is paramount during xbox hdmi repair, both for you and your device. Always disconnect your Xbox from power and remove all accessories before opening the console. Work in a static-free environment using an ESD mat and wrist strap to guard against electrostatic discharge.

Good lighting and magnification help you clearly see small parts and avoid mistakes. Organize screws and components in labeled containers to prevent loss. Wear safety glasses and heat-resistant gloves when soldering to protect from accidental burns or debris. Setting up your workspace properly not only safeguards your console but also boosts repair accuracy.

Data Backup and Warranty Considerations

Before starting xbox hdmi repair, back up all game data to the cloud or an external drive. This step ensures your progress and settings are safe in case of unexpected issues during the repair process.

Check if your Xbox is still under the standard 1-year warranty. Attempting a self-repair may void this coverage. Manufacturer repair policies can offer peace of mind but may involve longer turnaround times and higher costs. The table below summarizes key differences:

If you are unsure about voiding your warranty or need professional assistance, consider exploring Xbox HDMI port repair service for expert solutions. Taking these steps protects your data, wallet, and console during the repair journey.

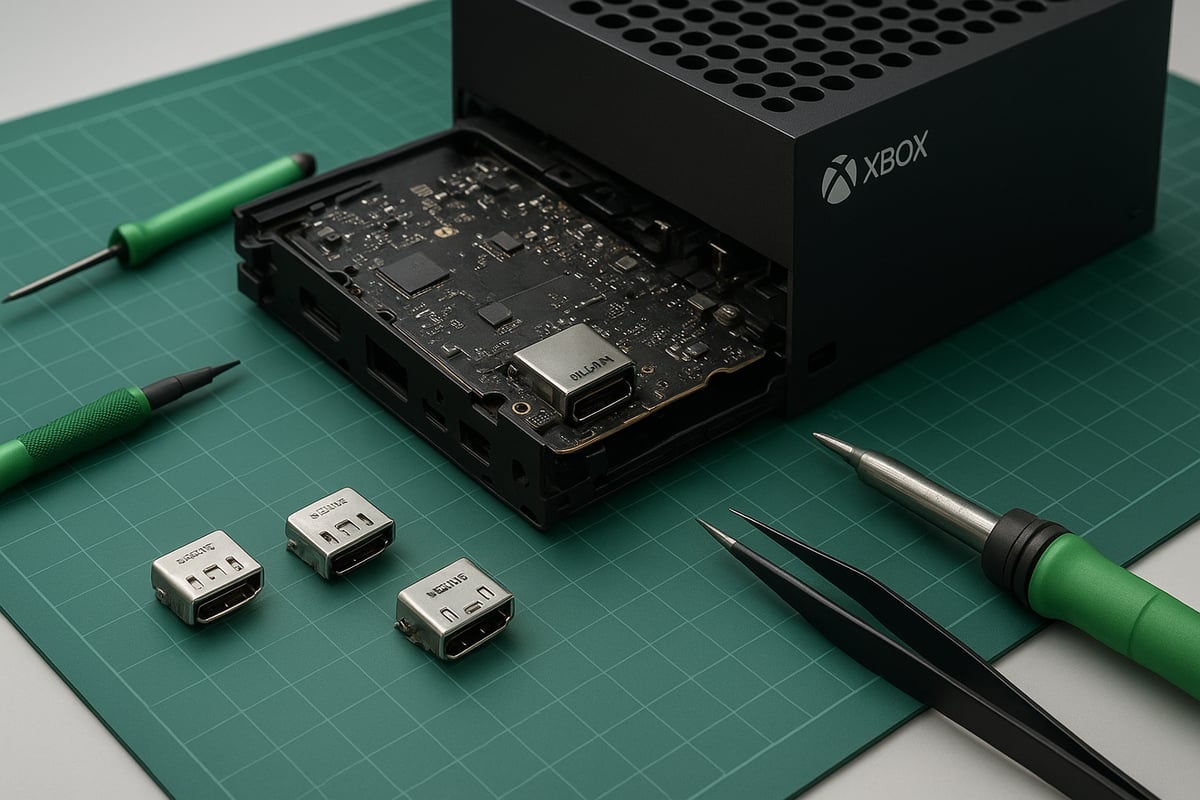

Step-by-Step Xbox HDMI Repair Instructions

Repairing your Xbox HDMI port might seem daunting, but with the right guidance, anyone can approach this task methodically. Whether you are a first-timer or have some electronics experience, this section will walk you through the xbox hdmi repair process. Each step is designed to minimize risk and maximize your chance of a successful repair.

Step 1: Disassembling Your Xbox Console

Begin by setting up your workspace for xbox hdmi repair. Gather all required tools, including a precision screwdriver set, ESD mat, and wrist strap. Ensure the console is unplugged and all accessories are removed.

Place the Xbox on the ESD mat. Carefully remove the external casing, taking care not to break any plastic clips. For most models, Torx screws secure the outer shell. Use the correct screwdriver to avoid stripping them.

Some Xbox models, like the Series X, have hidden fasteners beneath stickers or rubber feet. Refer to your model’s service guide to identify all screw locations. As you proceed, organize screws and parts in labeled containers to prevent mix-ups.

Once the casing is off, gently lift any internal metal shields. This exposes the motherboard, where you can locate the HDMI port. Keep track of each step to ensure a smooth reassembly later.

Take photos at each stage if needed. This visual reference can be invaluable during the xbox hdmi repair process.

Step 2: Identifying the Faulty HDMI Port

With the motherboard exposed, visually inspect the HDMI port. Common signs of failure include bent pins, cracked solder joints, or debris inside the port. These issues are often at the root of xbox hdmi repair needs.

Use a flashlight and magnifying glass for a closer look. Check if the port feels loose when gently wiggled, which may indicate broken connections. Compare your port with a known-good HDMI port or reference photos to spot anomalies.

Next, use a multimeter to test continuity across the port’s solder points. This helps determine if signal pathways are intact or if microfractures have developed. If your console can power on, attempt to access the troubleshooting menu and see if the display is recognized.

Rule out software or firmware issues by confirming your system is up to date. This step ensures you are not performing unnecessary xbox hdmi repair for a software-related problem.

Step 3: Removing the Damaged HDMI Port

If you have confirmed the HDMI port is at fault, proceed to remove it. This step of xbox hdmi repair requires patience and precision. Begin by heating a soldering iron and preparing a desoldering pump or wick.

Apply the soldering iron to each HDMI port pin on the motherboard to melt the solder. Use the desoldering pump or wick to remove excess solder, freeing the pins from the PCB pads. Work slowly to avoid lifting pads or damaging traces.

Once all solder is removed, gently lift the HDMI port from the board using tweezers. Some ports may be stubborn due to residual solder, so do not force them. If necessary, reheat stubborn pins or use a hot air rework station for even heating.

After removal, clean the area with isopropyl alcohol and a soft brush. Ensure all solder residue is gone before moving to the next xbox hdmi repair stage.

Step 4: Installing the New HDMI Port

Position the replacement HDMI port precisely over the PCB pads. Take your time aligning the pins, as a misaligned port can cause further xbox hdmi repair issues. Hold the port steady while you tack down a corner pin with solder to keep it in place.

Proceed to solder each pin carefully, ensuring strong, shiny connections. Use a fine-tipped soldering iron for accuracy. Avoid using too much solder, which can create bridges between pins.

After all pins are soldered, inspect your work with a magnifying glass. Look for cold solder joints or accidental bridges. Reflow any questionable connections as needed. For those seeking a visual guide, consider referencing this Xbox Series X HDMI Port Replacement Guide for step-by-step instructions.

Clean the area again with isopropyl alcohol to remove flux residue. Confirm the port is firmly attached and level with the board, which will help prevent future xbox hdmi repair needs.

Step 5: Reassembling and Testing the Console

Once the new HDMI port is installed, begin reassembling your Xbox. Replace any internal shields and ensure all components are seated correctly. Carefully snap the external casing back into place and secure all screws.

Connect your HDMI cable and power cord. Turn on the console and check for a display signal on your TV or monitor. If the screen remains blank, double-check your work or test with another HDMI cable.

If you encounter issues such as partial video, flickering, or no signal, review your solder joints for bridges or cold connections. Sometimes, a second round of xbox hdmi repair may be necessary for stubborn problems.

Test all functions, including audio over HDMI, to confirm the repair’s success. Take your time with each test to ensure your Xbox is fully operational.

Step 6: Advanced Tips for Difficult Repairs

Not all xbox hdmi repair jobs are straightforward. If you encounter lifted pads or damaged PCB traces, use micro-soldering techniques under magnification. A hot air rework station can help with stubborn solder or multi-layer boards.

For repairs involving trace damage, use thin wire to bridge broken connections. Document each step, as advanced repairs may require troubleshooting if issues persist.

If the port still fails after multiple attempts, consider seeking professional help. Some Xbox models have tightly packed components, making advanced xbox hdmi repair challenging for beginners.

Remember, patience and attention to detail are crucial. With careful execution, even complex HDMI repairs can be successful. However, know your limits and do not hesitate to consult an expert for persistent or unusual issues.

When to Seek Professional Xbox HDMI Repair Services

Experiencing persistent issues with your Xbox HDMI repair project? Sometimes, even with the best intentions and preparation, DIY fixes are not the safest or most cost-effective route. Understanding when to hand over your console to a professional can save both time and potential headaches.

Evaluating DIY vs. Professional Repair

Deciding whether to attempt an xbox hdmi repair yourself or seek expert assistance involves several factors. DIY repair may seem appealing due to potential savings, but it carries significant risks. You could void your warranty, damage delicate components, or even render your Xbox unusable.

For first-time repairers, the success rate is noticeably lower compared to seasoned technicians. Inexperienced attempts can often lead to additional issues, such as broken traces or solder pads. Consider the costs: while parts like HDMI ports are inexpensive, the tools and potential for error can add up quickly. In contrast, professional services offer established processes and higher reliability.

For a deeper breakdown of the pros and cons, see this detailed comparison: Professional console repair vs DIY. Whether you value peace of mind or want to avoid voiding your warranty, weighing these factors is essential for any xbox hdmi repair decision.

Finding a Reputable Repair Provider

When you determine that professional xbox hdmi repair is the best choice, selecting a trustworthy provider becomes your next priority. Look for companies with industry certifications, positive customer reviews, and experience handling your specific Xbox model. A reputable repair shop should offer transparent pricing, clear communication, and a warranty on their work.

Turnaround times can vary, but most established providers complete repairs within a few days. Be sure to ask about their policies for diagnostics, replacement parts, and post-repair support. Industry data shows that professionals achieve an 80 percent success rate for HDMI port replacements, highlighting the value of expertise in this area.

By choosing a reliable specialist, you ensure your xbox hdmi repair is handled with care and precision, reducing the risk of future failures.

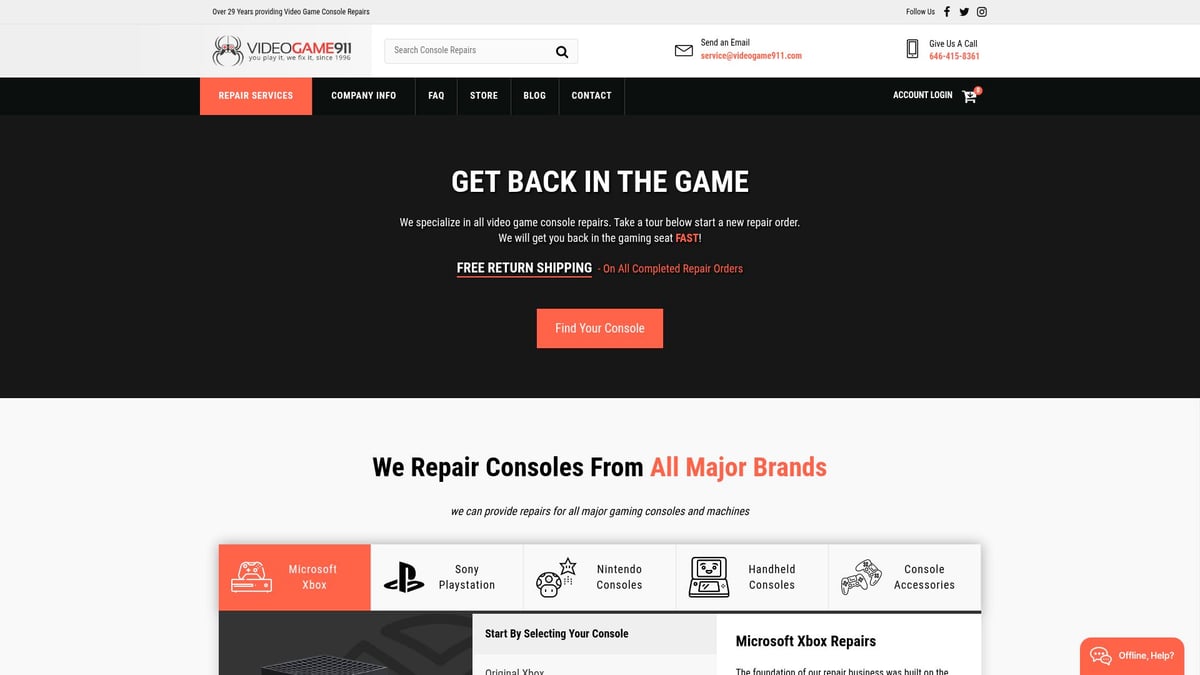

Professional Console HDMI Repair by Video Game 911

For those seeking the highest level of service, consider Video Game 911 for your xbox hdmi repair needs. With over 29 years of console repair experience, they have built a reputation for excellence across both modern and retro Xbox models. Their technicians use advanced diagnostic tools and offer free diagnostics with every order.

Customers benefit from return shipping on completed repairs, competitive pricing, and a strong warranty policy. Video Game 911’s commitment to quality has resulted in a high customer satisfaction rate and consistent success with even the most challenging HDMI issues.

If you have experienced repeated failures or complex motherboard damage, professional intervention is the most reliable choice. For more information on supported models and services, visit their page on Xbox Series X repair options.

Preventing Future HDMI Issues on Xbox

Keeping your Xbox HDMI port in top shape is essential for uninterrupted gaming and long-term console health. By following proven preventive strategies, you can avoid the frustration and cost of repeated xbox hdmi repair.

Best Practices for HDMI Port Care

Proper handling is the first defense against xbox hdmi repair needs. Always power off your console before connecting or disconnecting any HDMI cable. This simple habit protects both the port and the internal circuitry.

Avoid tugging or twisting the cable. Instead, gently grip the connector and pull it straight out. Excessive force or angling can damage the delicate pins inside the port.

Keep your Xbox in a stable, dust-free environment. Dust buildup can lead to poor connections and increase the risk of oxidation. Regularly inspect the HDMI port for debris and clean it carefully with a soft, dry brush.

Protective Accessories and Upgrades

Investing in the right accessories can greatly reduce the risk of future xbox hdmi repair. HDMI port covers are a smart way to keep dust and debris out when the port is not in use.

Right-angle HDMI adapters help relieve strain on the port, especially if your setup requires frequent cable movement or if space is tight behind your console. Surge protectors are essential to guard against electrical spikes that could damage your HDMI circuitry.

For those seeking quality hardware, consider researching Xbox Series X HDMI Port Replacement Part options to ensure you use certified components for any necessary upgrades.

Software and Firmware Maintenance

Staying current with software updates can help prevent problems that may lead to xbox hdmi repair. Microsoft regularly releases firmware updates to improve HDMI compatibility and fix bugs.

Perform routine system diagnostics to catch issues early. If you notice persistent problems, report them to Microsoft support for further assistance.

For official guidance on updates and troubleshooting, consult the Xbox Series X Service Guide, which covers essential maintenance steps and repair procedures.

Community Tips and Real-World Examples

The Xbox community is an invaluable resource for preventive advice and real-life repair stories. Popular YouTube channels feature step-by-step guides, helping users avoid unnecessary xbox hdmi repair by highlighting common mistakes and best practices.

Online forums suggest that using high-quality HDMI cables and following preventive measures can reduce HDMI failures by up to 25 percent. Many gamers share success stories after adopting these simple habits.

Learning from the experiences of others can help you avoid common pitfalls and keep your Xbox running smoothly for years to come.
