PS4 Disc Reader Repair: Complete Professional Guide

The PlayStation 4 remains one of the most popular gaming consoles in 2026, with millions of units still in active use. However, disc drive failures represent one of the most common issues affecting PS4 systems across all models. When your console refuses to accept discs, makes grinding noises, or fails to read games, understanding your repair options becomes essential. This comprehensive guide explores ps4 disc reader repair from both diagnostic and technical perspectives, helping you make informed decisions about restoring your console's functionality.

Understanding PS4 Disc Drive Failures

The PS4 disc drive assembly consists of multiple mechanical and electronic components working together. The laser lens reads data from the disc, the motor spins the disc at precise speeds, and various sensors detect disc insertion and positioning. Any single component failure can prevent the entire system from functioning properly.

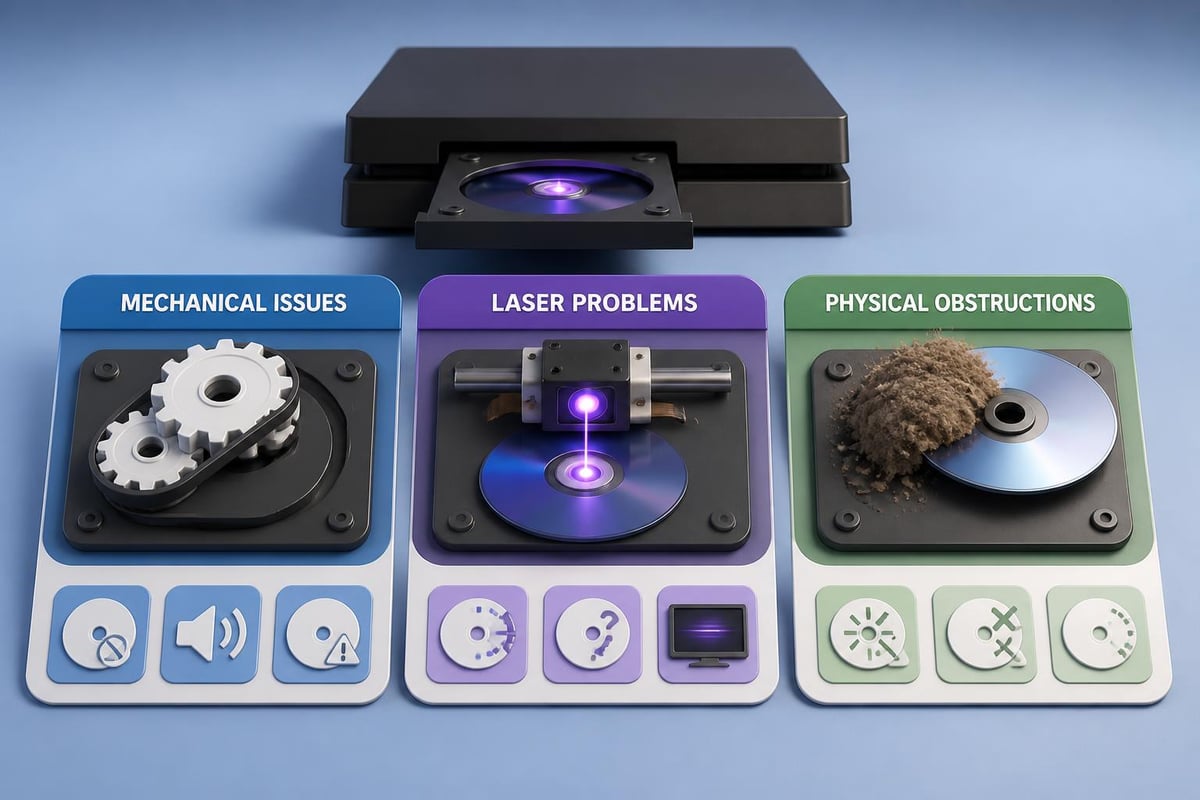

Common Symptoms and Their Causes

Mechanical component failures often manifest as audible symptoms. Grinding sounds typically indicate gear damage or motor misalignment, while clicking noises suggest the disc isn't engaging properly with the drive mechanism. These issues frequently stem from wear and tear after years of use or physical impacts to the console.

Laser assembly problems present differently. The console may accept the disc but fail to recognize it, display "unrecognized disc" errors, or struggle to load specific games while reading others successfully. According to PlayStation's official support documentation, laser degradation occurs naturally over time as the optical assembly weakens.

Physical obstructions represent another category entirely. Foreign objects inside the drive bay, accumulated dust on the lens, or damaged disc rollers can prevent proper disc handling. Regular console cleaning helps prevent many of these issues before they require professional intervention.

Diagnostic Process for Disc Reader Issues

Professional ps4 disc reader repair begins with systematic diagnosis. Rushing into disassembly without proper testing often leads to unnecessary component replacement and wasted resources.

Initial Software Troubleshooting

Before assuming hardware failure, exhaust software-based solutions. The PS4 operating system includes built-in tools that can resolve database corruption or software glitches affecting disc recognition.

Safe Mode Database Rebuild addresses file system corruption that may prevent disc reading. Power off the console completely, then hold the power button until you hear two beeps. Select "Rebuild Database" from the Safe Mode menu. This process reorganizes the system's data structure without deleting games or saves. Asurion's troubleshooting guide reports this resolves disc reading issues in approximately 15-20% of cases.

System Software Updates occasionally include firmware improvements for disc drive operation. Navigate to Settings, then System Software Update to verify you're running the latest version. Outdated firmware can cause compatibility issues with newer disc formats.

Physical Inspection and Testing

Once software solutions are eliminated, physical diagnosis becomes necessary. Test multiple discs in known good condition to determine whether the problem affects all media or specific titles. Different disc types (Blu-ray movies, PS4 games, DVD movies) utilize slightly different laser wavelengths, so testing variety helps isolate the failure point.

Examine the disc insertion mechanism visually. Shine a flashlight into the drive bay to check for visible obstructions, damaged rollers, or misaligned components. Listen carefully during disc insertion for unusual sounds that indicate mechanical binding or motor strain.

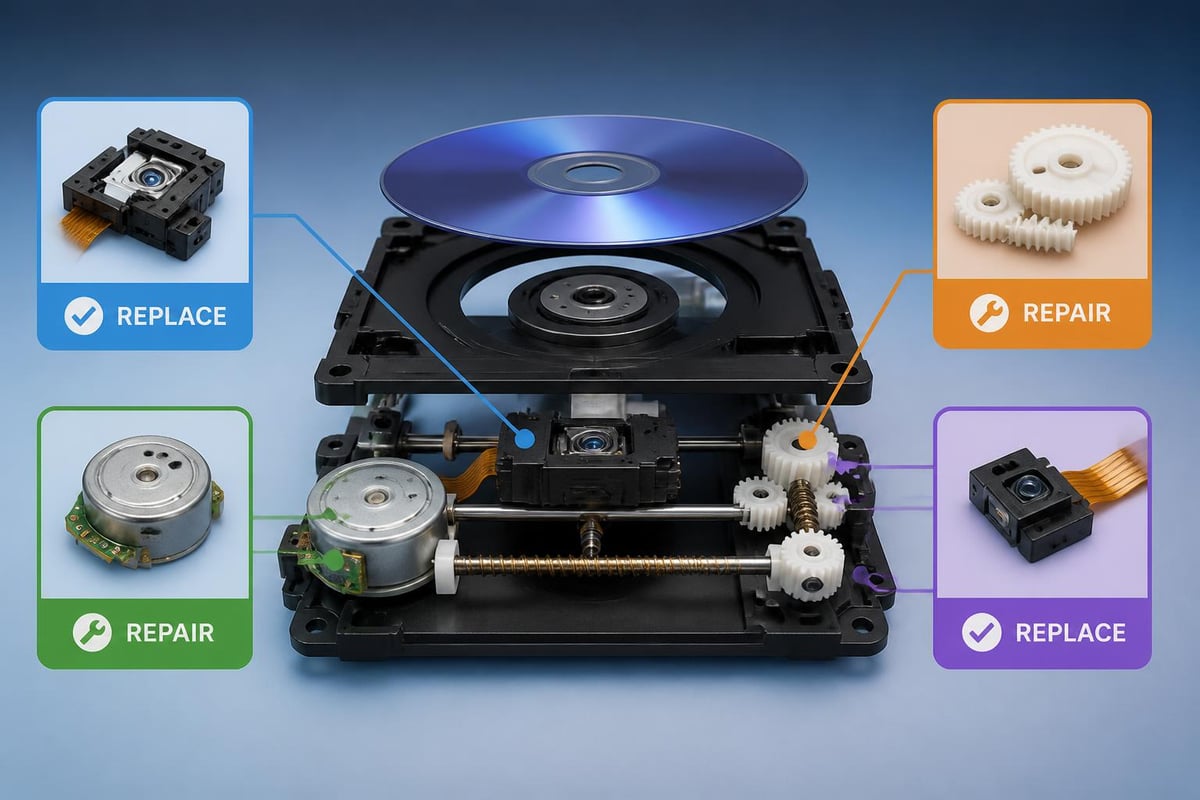

Component-Level Repair Considerations

Professional ps4 disc reader repair involves understanding which components can be serviced versus requiring replacement. This knowledge determines both repair cost and success probability.

Laser Assembly Replacement

The laser assembly represents the most commonly replaced component in disc drive repairs. These optical units degrade over time, losing the precision required to read data reliably. Replacement requires complete drive disassembly, careful handling of delicate ribbon cables, and precise realignment during reassembly.

Quality replacement lasers vary significantly. OEM (Original Equipment Manufacturer) parts maintain the same specifications as the original component, ensuring compatibility and longevity. Aftermarket alternatives cost less but may introduce compatibility issues or shorter service life.

Calibration after laser replacement determines repair success. The new laser must achieve proper focus distance and tracking sensitivity. Professional repair facilities use specialized equipment to verify these parameters, while DIY repairs rely on trial and error testing.

Gear and Motor Repairs

The mechanical drive system uses multiple gears and motors to handle disc insertion, ejection, and spinning. Plastic gears wear over time or crack under stress, particularly the small gears controlling the disc tray mechanism. These components require precision replacement to maintain proper spacing and alignment.

Motor replacement proves more complex. The spindle motor must spin discs at exact speeds for proper data reading, while the tray motor requires sufficient torque to move the disc mechanism smoothly. Testing these components individually requires specialized knowledge and equipment beyond typical consumer capability.

DIY Versus Professional PS4 Disc Reader Repair

The decision between self-repair and professional service depends on multiple factors including technical skill, tool availability, and risk tolerance. Understanding these distinctions helps set realistic expectations.

DIY Repair Limitations

Tool requirements create the first barrier to successful home repair. PS4 disassembly requires Torx security bits, precision screwdrivers, plastic pry tools, and tweezers. Proper laser replacement demands anti-static workspace preparation and magnification for working with small components. Missing tools increases the risk of stripping screws, breaking plastic clips, or damaging ribbon cables.

Technical knowledge gaps represent a more significant challenge. Identifying the specific failed component requires systematic testing knowledge. Reassembly demands understanding the precise order of operations and the location of numerous screws of different lengths. One misplaced screw can cause serious damage during reassembly. Comprehensive repair guides help but cannot replace hands-on experience.

Component sourcing introduces additional complications. Genuine replacement parts prove difficult for consumers to acquire, while aftermarket components vary wildly in quality. Purchasing the wrong laser model for your specific PS4 revision results in wasted money and continued malfunction.

Professional Repair Advantages

Experienced technicians approach ps4 disc reader repair with distinct advantages. They maintain inventories of tested replacement components, possess specialized diagnostic equipment, and have completed hundreds of similar repairs. This expertise translates into higher success rates and faster turnaround times.

Professional services also provide warranties on completed work. If the repair fails within the warranty period, the service handles re-work at no additional cost. DIY repairs offer no such protection, potentially leading to multiple part purchases and repeated disassembly attempts.

Video Game 911 specializes in PlayStation console repairs including disc drive issues, utilizing advanced diagnostic tools to identify failures accurately and performing repairs with OEM-quality components backed by service guarantees.

Model-Specific Repair Variations

Different PS4 models present unique repair challenges due to design variations across the console's production history. Understanding these differences helps set appropriate expectations for repair complexity and cost.

Original PS4 (CUH-1000 Series)

The launch model PS4 uses a disc drive design that experienced higher failure rates than later revisions. The drive's mechanical components show particular vulnerability to the infamous "blue light of death" issue, where power supply problems compound with disc drive malfunctions. Repairing these units often requires addressing both the drive mechanism and power delivery components simultaneously.

Drive replacement on original PS4 models demands special attention to the Blu-ray board pairing. The disc drive circuit board is married to the motherboard through encrypted pairing, meaning you cannot simply swap in any replacement drive. Professional repair requires either transferring the original board to a new drive mechanism or performing board-level repairs on the existing assembly.

PS4 Slim and Pro Models

Later revisions simplified some repair aspects while complicating others. The PS4 Slim uses a more compact drive assembly that requires different disassembly procedures. Space constraints make component access more challenging, increasing the precision required during repair work. However, Sony improved component quality in these later models, resulting in lower overall failure rates.

The PS4 Pro presents its own unique considerations. Its more powerful hardware generates additional heat, which can accelerate optical component degradation if ventilation becomes compromised. Pro model repairs often benefit from simultaneous thermal paste replacement and fan cleaning to prevent recurrence.

Preventive Maintenance and Longevity

Proactive care extends disc drive lifespan significantly, potentially avoiding the need for ps4 disc reader repair altogether. Simple maintenance practices reduce wear on mechanical components and keep the optical assembly functioning optimally.

Environmental Factors

Dust management represents the single most impactful preventive measure. Position your PS4 in areas with minimal dust accumulation, away from carpet fibers and pet dander. Use the console in well-ventilated spaces that allow proper airflow around all sides. Blocked ventilation ports force internal fans to work harder, drawing more contaminated air through the disc drive assembly.

Temperature control affects component longevity. Avoid placing the console in enclosed entertainment centers without adequate ventilation. The internal heat generated during gameplay accelerates wear on plastic gears and degrades laser assembly components faster. Ensure at least three inches of clearance on all vented sides.

Vibration and impacts damage precision mechanical components. Place the console on stable, level surfaces where it won't be bumped or knocked during use. Moving the console while a disc is spinning can misalign the laser assembly or damage the disc itself.

Usage Best Practices

Proper disc handling prevents many drive issues. Always hold discs by the edges, never touching the data surface. Store games in their cases when not in use to prevent scratches and contamination. Insert and remove discs gently, allowing the drive to fully complete its ejection cycle rather than forcing the disc out.

Consider transitioning to digital game purchases for your primary gaming library. While physical media offers collectibility and resale value, reducing disc drive usage naturally extends its operational life. Reserve the disc drive for your favorite physical titles and new releases, relying on digital downloads for frequently played games.

• Keep discs clean and scratch-free
• Allow the console to cool between extended gaming sessions
• Perform quarterly visual inspections of the disc slot
• Update system software regularly
• Never force stuck discs; seek professional help immediately

Cost Analysis and Repair Economics

Understanding the financial aspects of ps4 disc reader repair helps make sound decisions about whether repair makes economic sense versus console replacement or digital conversion.

Repair Cost Factors

Professional repair pricing varies based on several factors. The specific failed component affects parts cost significantly, with complete drive assemblies costing more than individual gears or belts. Labor charges reflect repair complexity, with simple motor replacements requiring less technician time than full laser assembly replacements.

Component costs break down as follows:

Labor charges typically range from $50 to $100 depending on the repair shop's location and expertise level. Professional services like Video Game 911 often include diagnostic fees in the total repair cost and provide free return shipping on completed orders.

Value Assessment

Compare repair costs against current PS4 values and your specific usage patterns. As of 2026, used PS4 consoles sell for $150-$250 depending on model and condition. If total repair costs approach 50% of replacement value, consider whether upgrading makes more financial sense.

However, pure economics don't tell the complete story. Factor in your existing game library if you own primarily physical media, the value of your save data and digital purchases, and the current availability of newer consoles. The PS5 remains in higher demand, making the PS4 a viable gaming option for budget-conscious players with extensive physical game collections.

Warranty and Service Options

Navigating warranty coverage and service channels affects both repair cost and convenience. Understanding your options ensures you choose the most appropriate repair path.

Manufacturer Warranty Considerations

Sony's standard PS4 warranty covers one year from purchase date for new consoles. This warranty includes disc drive failures resulting from manufacturing defects but excludes damage from misuse, modification, or accidents. Check your purchase receipt to determine if your console remains under manufacturer coverage before pursuing third-party repair.

Extended warranty programs from retailers vary in coverage. Some include disc drive repairs while others exclude them as "mechanical failures." Review your specific warranty terms to understand what qualifies for coverage and what deductibles apply.

Third-Party Repair Services

Professional repair services offer several advantages over manufacturer repairs for out-of-warranty consoles. Turnaround times typically run faster, costs come in lower, and services often include additional cleaning and maintenance beyond the specific repair. Many facilities provide free diagnostic services to identify the exact failure before committing to repair costs.

Reputation and experience matter significantly when selecting a repair provider. Seek services with documented expertise in PlayStation console repair, positive customer reviews, and clear warranty policies on completed work. Facilities with decades of console repair experience have encountered nearly every possible failure mode and maintain comprehensive parts inventories for efficient repairs.

Understanding ps4 disc reader repair options empowers you to make informed decisions when disc drive failures occur. Whether pursuing DIY fixes for simple issues or recognizing when professional intervention becomes necessary, proper knowledge prevents costly mistakes and wasted time. For PlayStation owners facing persistent disc drive problems, Video Game 911 provides expert diagnosis and repair services with over 29 years of console repair experience, free diagnostics, and warranty-backed work that gets your gaming library accessible again.
