PS2 Repair: Expert Guide to Console Troubleshooting
The PlayStation 2 remains one of the most beloved gaming consoles ever produced, with over 155 million units sold worldwide since its launch in 2000. Despite its robust construction and legendary reliability, PS2 consoles eventually develop issues after years of use. Understanding common problems and their solutions helps owners preserve these iconic systems for continued enjoyment. Whether you're experiencing disc read errors, power failures, or controller connection issues, proper diagnosis and repair techniques can restore your console to full functionality.
Understanding Common PS2 Hardware Failures
The PlayStation 2 experiences several predictable failure patterns as components age. Disc read errors represent the most frequent complaint, typically occurring when the laser assembly weakens or becomes misaligned. The optical drive uses a laser to read game discs, and this component degrades with extended use, making it increasingly difficult to recognize or load games.
Power supply failures also plague aging PS2 consoles. The internal power supply unit converts AC voltage to DC for the system's components, and capacitors within this unit deteriorate over time. When capacitors fail, the console may refuse to power on, shut down unexpectedly during gameplay, or exhibit erratic behavior like random resets.
Identifying Laser Assembly Problems

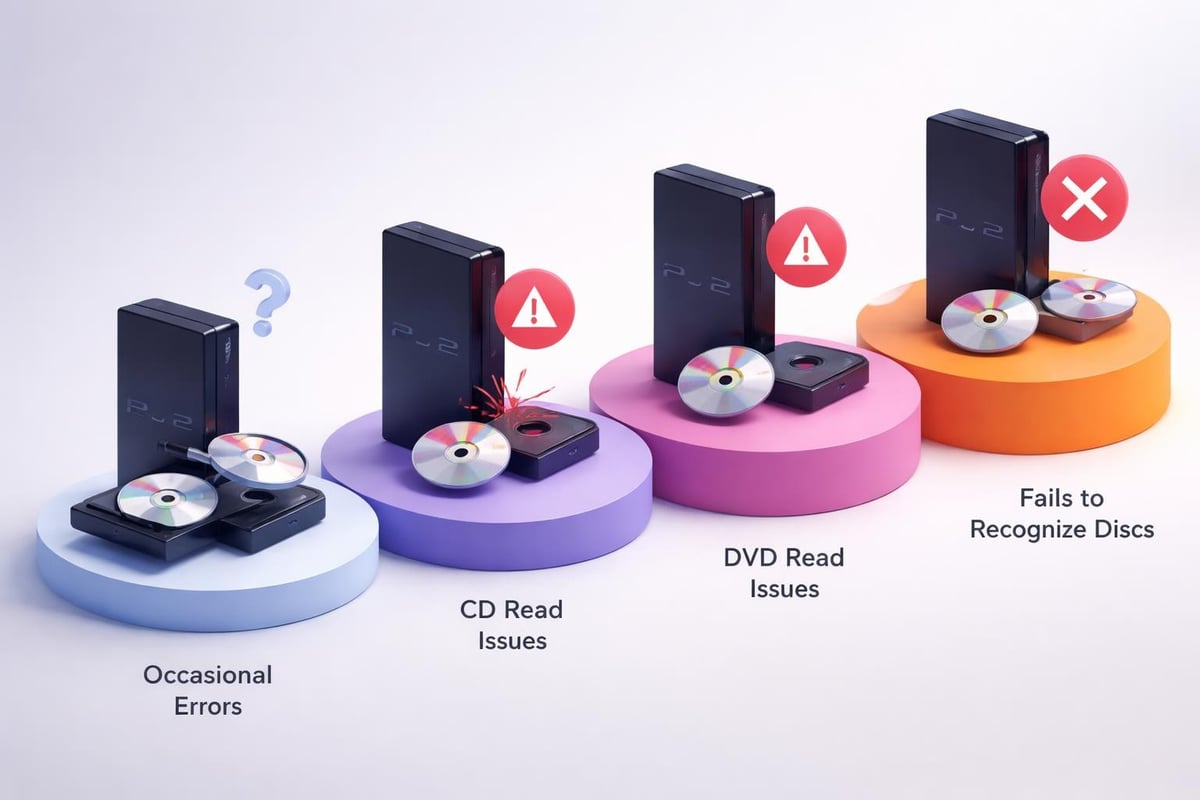

Laser-related issues manifest in several distinct ways. Your console might struggle to read certain disc types while reading others without issue. Blue-backed PlayStation discs often fail first, followed by silver DVD-based games. Some systems display "Disc Read Error" messages immediately, while others spin the disc endlessly without loading content.
Testing laser function requires methodical observation:
- Note which disc types fail (CD-ROM vs. DVD-ROM)
- Monitor how long the console attempts to read before failing
- Listen for unusual grinding or clicking sounds from the drive
- Check whether the laser lens appears dirty or clouded
Professional repair services use specialized equipment to measure laser output power, determining whether adjustment or replacement is necessary. Comprehensive repair guides provide voltage specifications and adjustment procedures for technicians working on these systems.
Power System Diagnostics and Solutions
Power-related problems require careful diagnosis to avoid misidentifying the root cause. A console that won't power on might suffer from a failed power supply, damaged motherboard traces, or simply a defective power switch. Systematic testing eliminates possibilities and identifies the actual culprit.
Begin diagnosis by checking the power indicator light. No light at all suggests either no power reaching the console or a failed power supply. A red light that won't turn green when pressing the power button indicates the system recognizes power but won't boot. A green light that immediately turns off points to a short circuit or protection mode activation.
| Symptom | Likely Cause | Repair Approach |
|---|---|---|
| No power light | AC adapter failure, power jack damage | Test adapter voltage, inspect jack solder joints |
| Red light, no response | Power button failure, motherboard issue | Test button continuity, check motherboard traces |
| Powers on briefly, shuts down | Overheating protection, short circuit | Clean thermal paste, inspect for component shorts |
| Random shutdowns during play | Failing capacitors, thermal issues | Replace PSU capacitors, improve ventilation |
The fat model PS2 uses an internal power supply, making repairs more complex than the slim model's external adapter approach. Video tutorials demonstrate disassembly and power supply repair for those comfortable working with electronics.
Controller Port and Memory Card Issues
The PlayStation 2's controller and memory card ports endure significant wear from repeated insertions and removals. Port pins bend, solder joints crack, and internal connectors fail. These issues prevent controllers from responding or memory cards from being recognized by the system.
Testing port function requires trying multiple known-good controllers and memory cards. If all devices fail in one port but work in another, the problem lies with that specific port. Individual pin damage sometimes affects only certain controller functions, leading to partially working controllers that respond to some buttons but not others.
Port repair demands precision soldering skills and replacement connectors. While experienced owners can source replacement parts and attempt repairs themselves, professional services ensure proper component alignment and secure solder connections that withstand future use.
Optical Drive Mechanical Failures

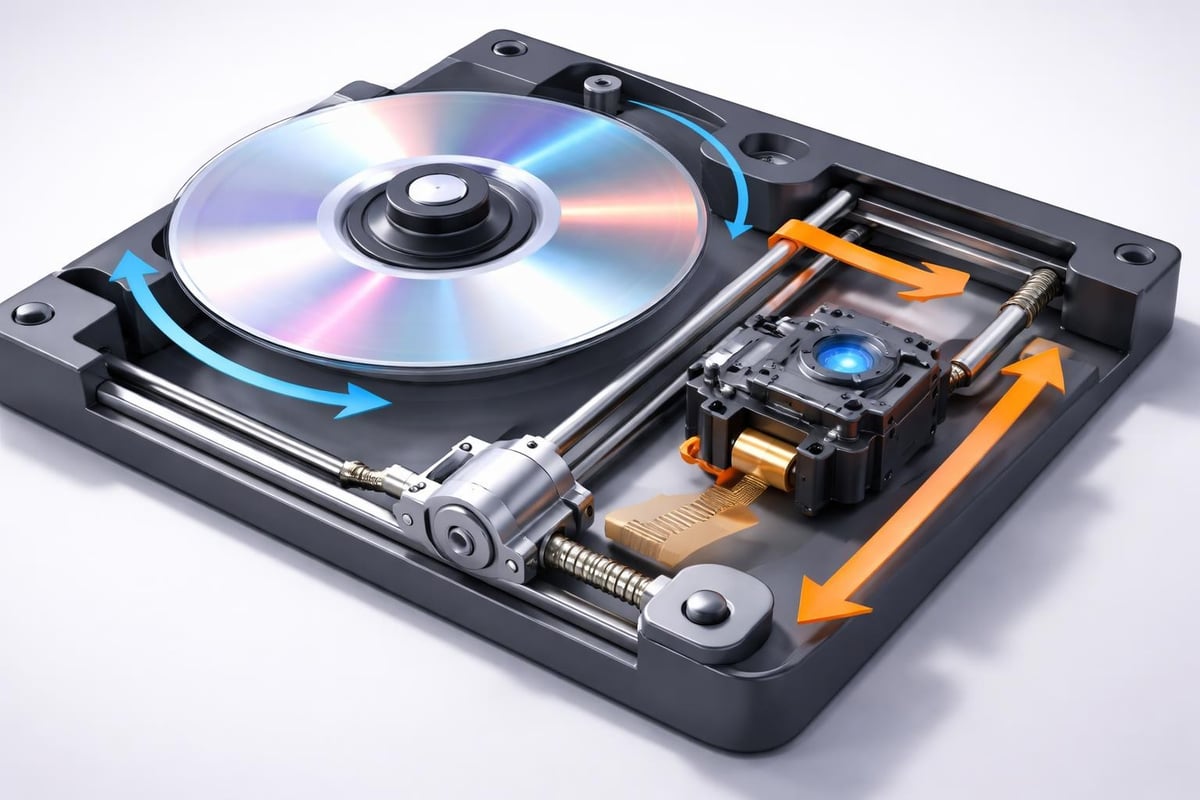

Beyond laser issues, the PS2 optical drive contains mechanical components that fail independently. The spindle motor spins discs at the correct speed, while the sled motor moves the laser assembly across the disc surface. Either motor can seize or weaken, preventing proper disc operation.
Spindle motor problems often produce distinctive symptoms. The disc may spin inconsistently, fail to reach proper speed, or not spin at all. You might hear the motor attempting to start but failing to maintain rotation. Detailed repair resources explain the relationship between motor function and disc reading capabilities.
Sled motor issues prevent the laser from tracking across the disc properly. The laser might remain stuck at the inner or outer edge of the disc, unable to follow the data spiral. This results in read errors even when the laser itself functions correctly and the disc spins at proper speed.
Motherboard and Component-Level Repairs
Advanced ps2 repair involves motherboard-level diagnostics and component replacement. Capacitors, voltage regulators, and integrated circuits all eventually fail. These repairs require electronics expertise, specialized tools, and genuine replacement components.
Capacitor replacement addresses many age-related issues. Electrolytic capacitors dry out over time, losing their ability to filter power properly. This causes system instability, graphical glitches, and random crashes. Identifying failed capacitors involves visual inspection for bulging or leaking components and testing with specialized meters.
Voltage regulator failures prevent proper power distribution to system components. The PS2 motherboard uses multiple voltage rails, and regulator failure on any rail can disable specific functions or prevent the entire system from operating. Professional technicians measure voltage outputs and replace failed regulators to restore proper operation.
Temperature Management and Overheating Prevention
The PlayStation 2 generates significant heat during operation, and inadequate cooling leads to premature component failure. The original fat model PS2 uses an internal fan and heat sink assembly, while the slim model relies on passive cooling with strategic ventilation.
Dust accumulation blocks airflow and insulates components, raising operating temperatures. Over years of use, dust buildup inside the console creates a thermal blanket effect. Regular cleaning extends console lifespan significantly, yet many owners never open their systems for maintenance.
Thermal paste between processors and heat sinks dries and loses effectiveness over time. Fresh thermal paste improves heat transfer, lowering component temperatures and reducing thermal stress. This simple maintenance task prevents more serious failures down the road.
Professional vs. DIY Repair Considerations
Deciding between professional service and DIY ps2 repair depends on several factors. Skill level, available tools, parts sourcing, and time investment all influence the best approach. Simple fixes like cleaning or laser adjustment suit capable hobbyists, while complex motherboard repairs require professional expertise.
Consider these factors when making your decision:
- Technical skill: Do you have electronics experience and soldering ability?
- Tool availability: Do you own or can you acquire specialized repair equipment?
- Part sourcing: Can you identify and obtain genuine replacement components?
- Time value: Is your time better spent on repair or other activities?
- Risk tolerance: Can you accept potential damage from inexperienced repair attempts?
Professional repair services offer expertise built over thousands of console repairs. Experienced PlayStation repair specialists recognize failure patterns instantly and stock genuine replacement parts. They also provide warranties on completed work, protecting your investment.
For those interested in attempting repairs themselves, comprehensive repair manuals provide step-by-step guidance with detailed photographs. These resources explain disassembly procedures, identify common failure points, and describe proper repair techniques.
Parts Sourcing and Quality Considerations
Obtaining quality replacement parts significantly impacts repair success. The PlayStation 2 has been out of production for over a decade, making genuine Sony parts increasingly scarce. Third-party manufacturers produce replacement lasers, motors, and other components with varying quality levels.

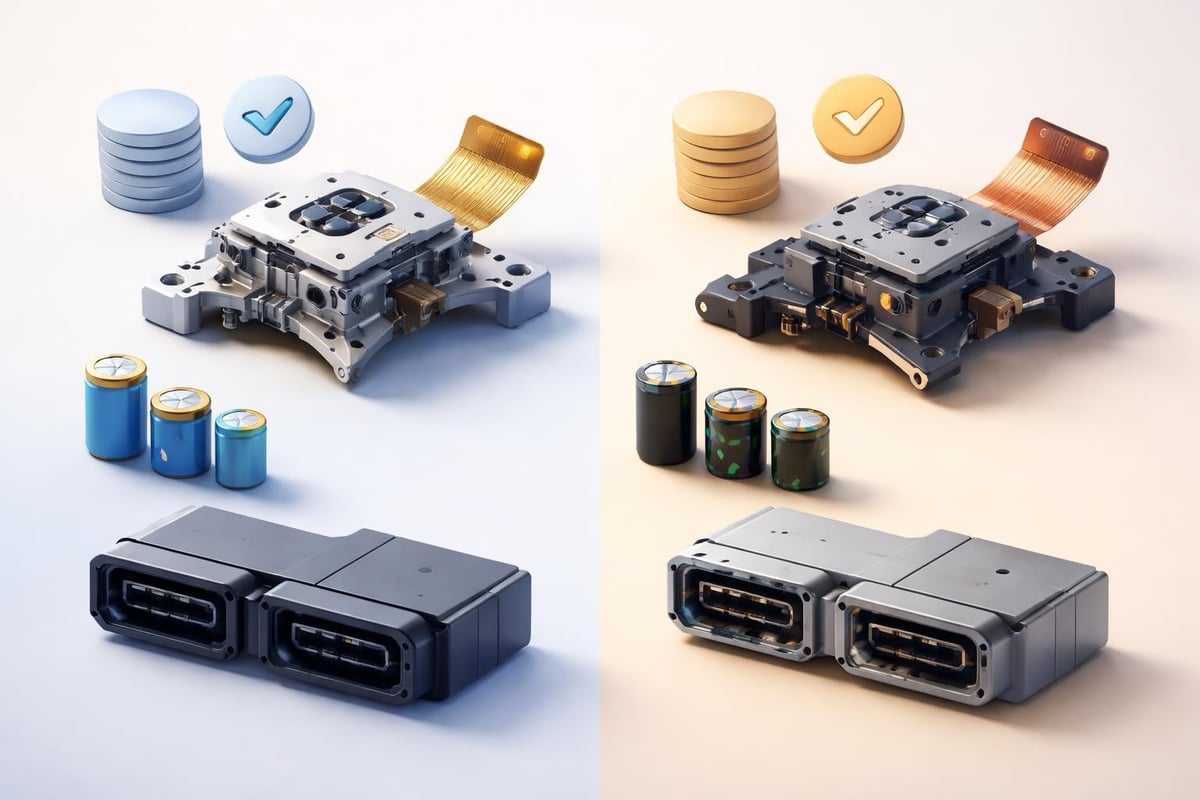

Laser assemblies represent the most commonly replaced component. Multiple manufacturers produce compatible lasers, but quality varies dramatically. Inferior lasers fail quickly or never achieve proper alignment. Research seller reputations and seek recommendations from repair communities before purchasing.
| Component | Genuine Part Availability | Third-Party Quality | Typical Cost Range |
|---|---|---|---|
| Laser assembly (KHS-400C) | Rare, expensive | Variable, test before buying | $15-45 |
| Laser assembly (SPU-3170) | Very rare | Limited options available | $20-50 |
| Power supply capacitors | Available as kits | Generally good | $8-15 |
| Controller ports | Limited stock | Acceptable quality | $5-12 |
Capacitor kits designed specifically for PS2 power supply repair simplify the replacement process. These kits include all necessary capacitors in correct values and ratings, eliminating guesswork and ensuring compatibility.
Regional Variations and Model Differences
The PlayStation 2 shipped in multiple regional variants and underwent significant revisions during its production run. Early SCPH-10000 through SCPH-39000 series models share similar internal architecture but differ in minor component choices. The slim SCPH-70000 series introduced a complete redesign with different repair considerations.
Fat model variants (SCPH-10000 through SCPH-50000) use internal power supplies and include expansion bay accessories. These models share common failure modes and repair procedures, though specific component part numbers vary by region and revision.
Slim model variants (SCPH-70000 through SCPH-90000) eliminated the expansion bay, switched to external power adapters, and redesigned the optical drive mechanism. Slim models exhibit different failure patterns, with network adapters and hard drive support removed from the equation.
Understanding your specific model helps when sourcing parts and following repair guides. Model numbers stamped on the console bottom identify exact variants, ensuring you obtain correct replacement components and follow appropriate procedures.
Preventive Maintenance for Longevity
Proactive maintenance prevents many common failures and extends console lifespan significantly. Regular cleaning, proper ventilation, and careful handling preserve system components and delay age-related degradation.
External cleaning should occur monthly for regularly used consoles. Dust accumulates quickly on ventilation grilles and works its way inside the system. Compressed air removes surface dust, while soft brushes clean vent openings without damaging components.
Internal cleaning every 1-2 years maintains optimal thermal performance. Disassembling the console allows thorough dust removal from fans, heat sinks, and circuit boards. This process also enables thermal paste replacement and inspection for developing issues like bulging capacitors.
Storage conditions significantly impact component longevity:
- Maintain moderate temperature and humidity levels
- Avoid exposure to direct sunlight or heat sources
- Store vertically to prevent disc drive misalignment
- Use surge protectors to prevent power spike damage
- Allow adequate ventilation space around the console
Advanced Troubleshooting Techniques
Complex problems require systematic diagnostic approaches. When simple solutions fail, methodical testing identifies root causes and prevents wasted effort on incorrect repairs. Professional technicians follow established protocols that eliminate variables and pinpoint actual failures.
Isolation testing determines whether problems originate from the console or accessories. Trying multiple games eliminates software issues. Testing different power outlets rules out electrical problems. Swapping cables identifies connection failures. Each test narrows the possible failure points.
Component substitution verifies suspected failures. Swapping known-good parts into a malfunctioning system confirms whether replaced components caused issues. This approach requires access to spare parts but provides definitive failure identification.
While many owners enjoy the challenge of DIY repairs, complex issues benefit from professional assessment. Services like Video Game 911's PlayStation 2 repair combine decades of experience with proper diagnostic equipment, quickly identifying problems that might stump home repair attempts. Professional diagnosis often saves money compared to trial-and-error part replacement.
Port Repair Expertise and Modern Solutions
Physical port damage affects many aging PlayStation 2 consoles. HDMI modification became popular for owners wanting modern display compatibility, but traditional AV multi-out port repairs remain essential. Damaged ports prevent video output entirely or cause intermittent connection issues.
Port repair requires micro-soldering skills and steady hands. The AV multi-out connector contains numerous small pins that must align perfectly and maintain solid electrical connections. One bent pin or cold solder joint prevents proper function.
Similar expertise applies across console generations. Modern systems like the Xbox Series X and PlayStation 5 use HDMI ports that also suffer connection failures. Professional HDMI port repair services apply the same precision techniques to current-generation consoles.
Utilizing Professional Resources and Support
Accessing quality repair resources improves success rates for both DIY enthusiasts and those seeking professional help. Step-by-step repair guides with visual aids walk through common procedures, while community forums provide troubleshooting advice from experienced repair technicians.
Professional services offer several advantages beyond technical expertise. Free diagnostics identify exact problems before committing to repairs. Warranty coverage protects against defective replacement parts or workmanship issues. Return shipping on completed repairs adds convenience, especially for valuable or rare console variants.
Specialized retro console repair services understand the unique challenges of maintaining aging hardware. They stock appropriate replacement parts, recognize uncommon failure modes, and complete repairs efficiently.
When selecting professional ps2 repair services, consider reputation, experience, and service offerings. Established businesses with decades of console repair experience bring knowledge impossible to match through occasional DIY work. They've encountered every failure mode multiple times and developed proven solutions.
Documentation and Repair Records
Maintaining detailed records of repairs, part replacements, and maintenance helps track console health over time. Documentation proves valuable when troubleshooting recurring issues or planning future maintenance. Professional services typically provide service records, while DIY repairs benefit from personal note-keeping.
Record the following information for each repair or maintenance session:
- Date of service
- Specific symptoms or problems addressed
- Diagnostic steps performed
- Parts replaced with manufacturer and model numbers
- Settings adjusted or calibrations performed
- Results and remaining issues if any
This documentation establishes maintenance history, identifies patterns in component failures, and guides future repair decisions. When consulting professional services, providing this history helps technicians quickly understand your console's condition and previous interventions.
Value Preservation Through Proper Repair
Well-maintained PlayStation 2 consoles retain both functional and collectible value. Certain models command premium prices among collectors, especially limited editions and early production units. Proper repairs using quality parts preserve this value, while shoddy work or incorrect parts diminish it.
Collectors particularly value consoles with original components and minimal modifications. Using period-correct replacement parts maintains authenticity. Documenting repairs with photos and receipts adds transparency for potential future buyers. Even heavily used consoles gain value through professional restoration.
Beyond monetary considerations, proper repairs preserve gaming history. The PlayStation 2 library includes thousands of exclusive titles unavailable on other platforms. Maintaining functional hardware ensures continued access to these games for current and future generations. Quality repair work directly supports video game preservation efforts.
Understanding ps2 repair fundamentals empowers owners to make informed decisions about maintaining these classic consoles. Whether tackling simple cleaning and maintenance or addressing complex component failures, the right approach preserves your gaming investment. For those facing challenging repairs or seeking expert diagnosis, professional services combine specialized knowledge with proper tools and genuine parts. Video Game 911 brings over 29 years of console repair experience to every PlayStation 2 service, offering free diagnostics, quality workmanship, and the expertise needed to restore your system to peak performance.
